The ISIIS-DPI P75 is designed for researchers seeking to quantify and visualize planktonic organisms and particles at the mesoplankton scale. It is optimized for imaging organisms approximately 300 µm and larger, making it particularly well suited for studies focused on copepod-sized taxa, larval stages, aggregates, and gelatinous organisms—all within their natural spatial distributions.
Availability:In Stock
Maximum frame rate of camera is approx. 20fps.
Maximum water flow can be derived from the following formula: Field of view x 20fps = Distance /sec
| Model | FOV x FOV x Recommended DOF |
Min. Taxa Size Recommended |
Volume per Frame |
Max Water Flow |
| ISIIS-DPI_P125 | 80mm x 80mm x 300mm | 700µm | 1920 cm³ | 1.6 m/sec |
| ISIIS-DPI_P100 | 80mm x 80mm x 200mm | 500µm | 1280 cm³ | 1.6 m/sec |
| ISIIS-DPI_P75 | 48mm x 48mm x 120mm | 300µm | 275 cm³ | 1.0 m/sec |
| ISIIS-DPI_T424 | 18mm x 18mm x 3.5mm | 50µm | 1.13 cm³ | 0.36 m/sec |
| Model | FOV x FOV x Recommended DOF |
Min. Taxa Size Recommended |
Volume per Frame |
Max Water Flow |
| ISIIS-DPI_P125 | 115mm x 115mm x 300mm | 700µm | 3950 cm³ | 3.0 m/sec |
| ISIIS-DPI_P75 | 70mm x 70mm x 120mm | 400 µm | 585 cm³ | 1.75 m/sec |

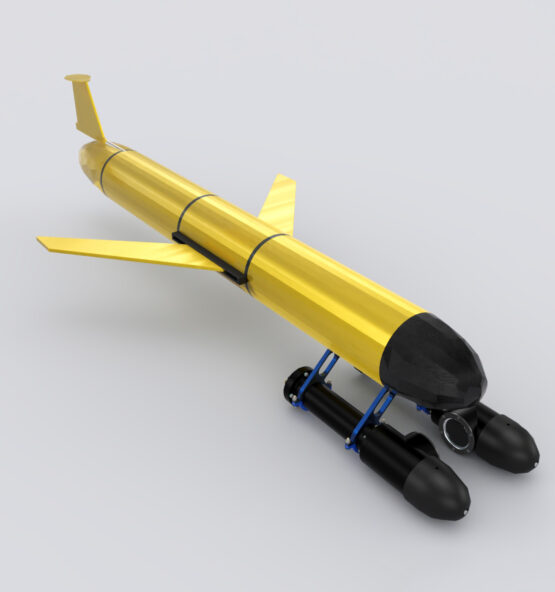

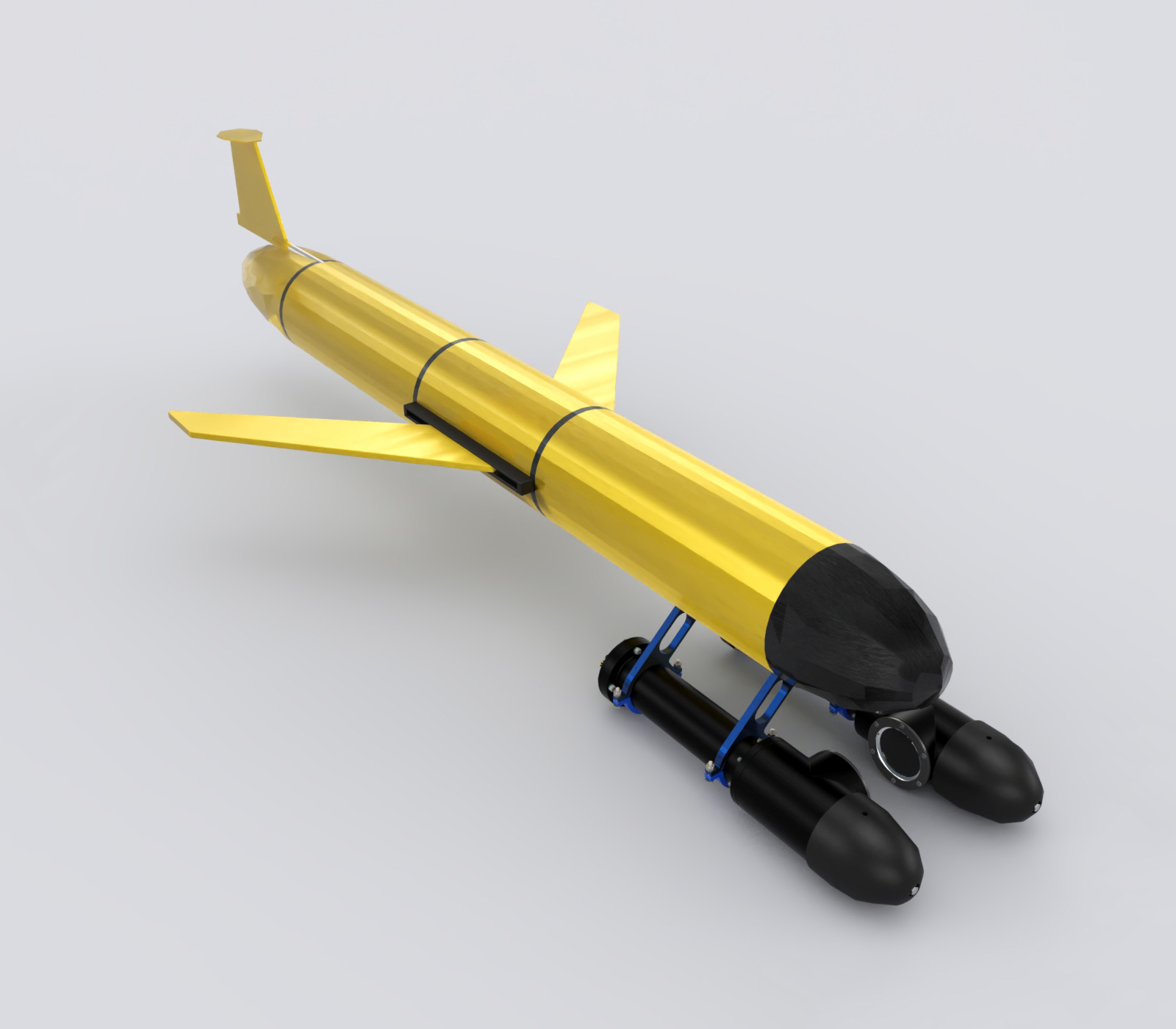

By combining a large imaged volume, high frame rate, and compact form factor, the P75 enables statistically robust sampling of plankton communities in both freshwater and marine environments. It can be deployed from small vessels, towed platforms, or profiling systems. With the ability to capture high-quality imagery at up to 20 frames per second, the P75 is especially effective for observing patchiness, fine-scale vertical structure, and fragile gelatinous taxa that are poorly captured by traditional nets.
The P75 is available in two depth configurations to match mission requirements. A 60 m-rated acetal housing is ideal for lakes, rivers, estuaries, and coastal applications where ease of handling and rapid deployment are priorities. For deeper or more demanding environments, a 1,000 m-rated aluminum housing provides extended operational range and increased safety margins for offshore and deep-water missions, without compromising optical performance.

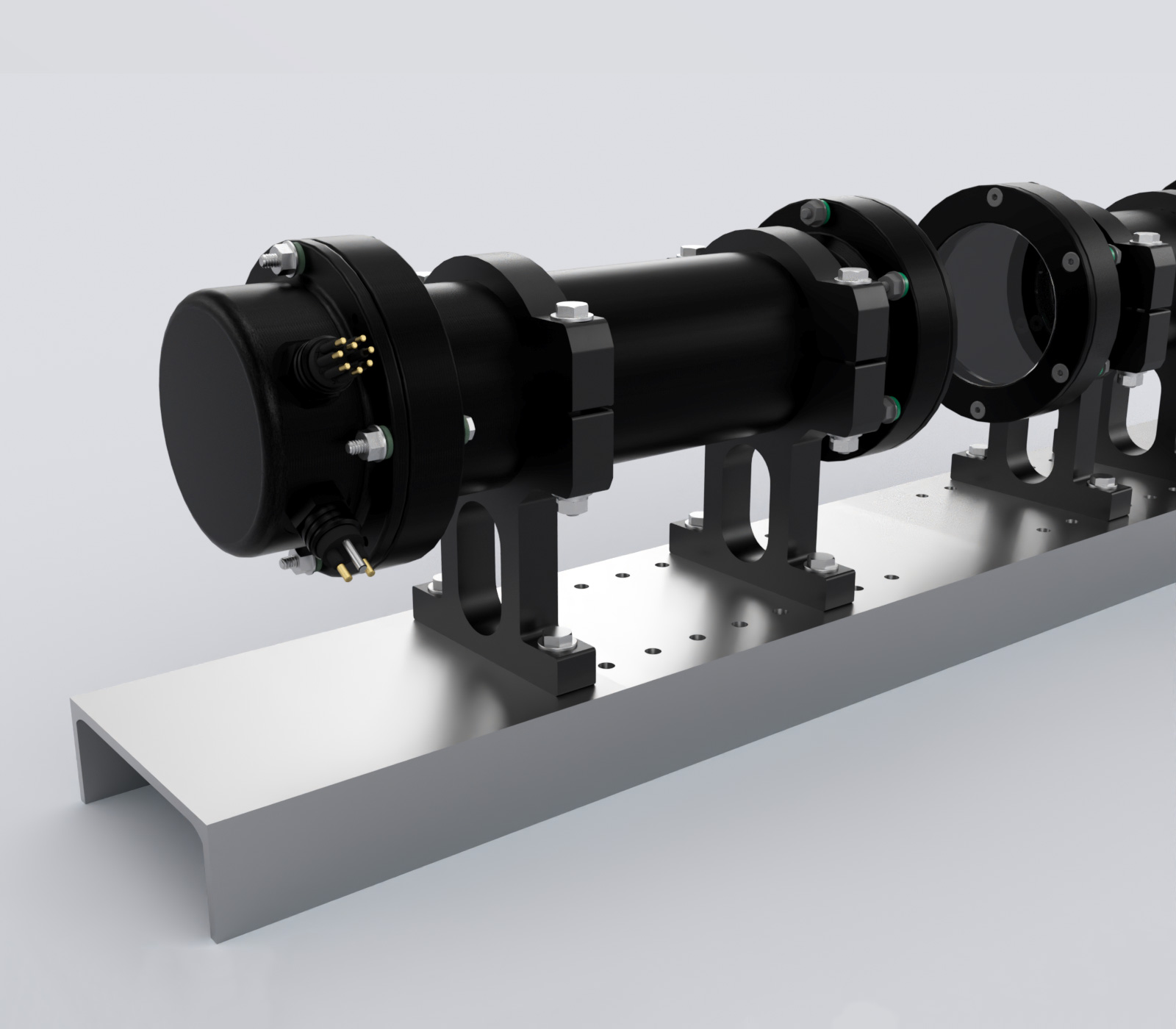

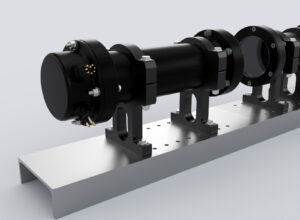

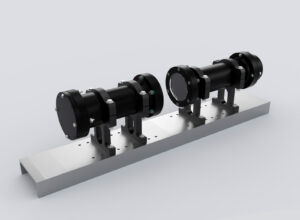

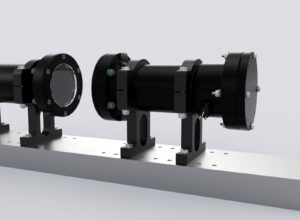

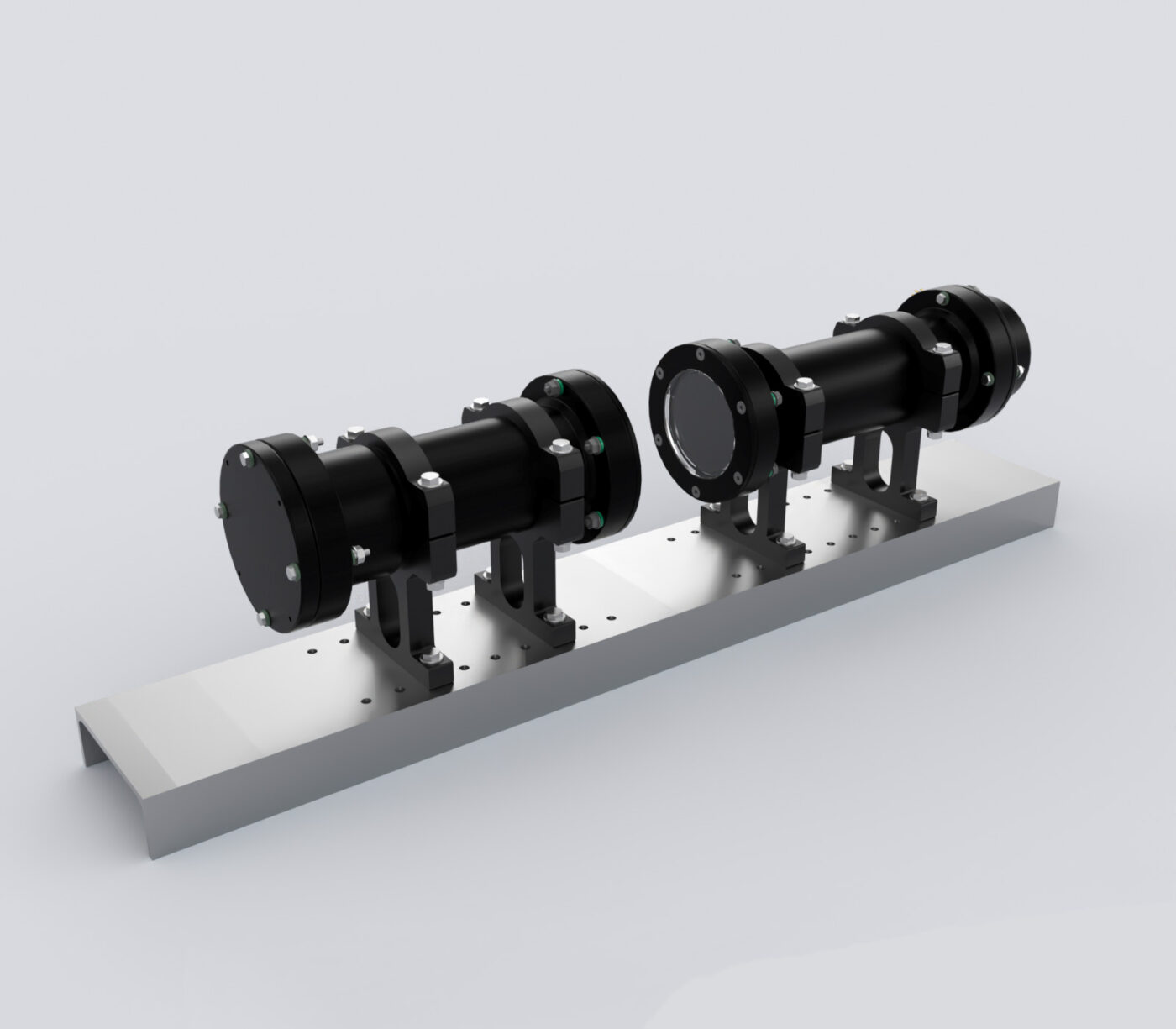

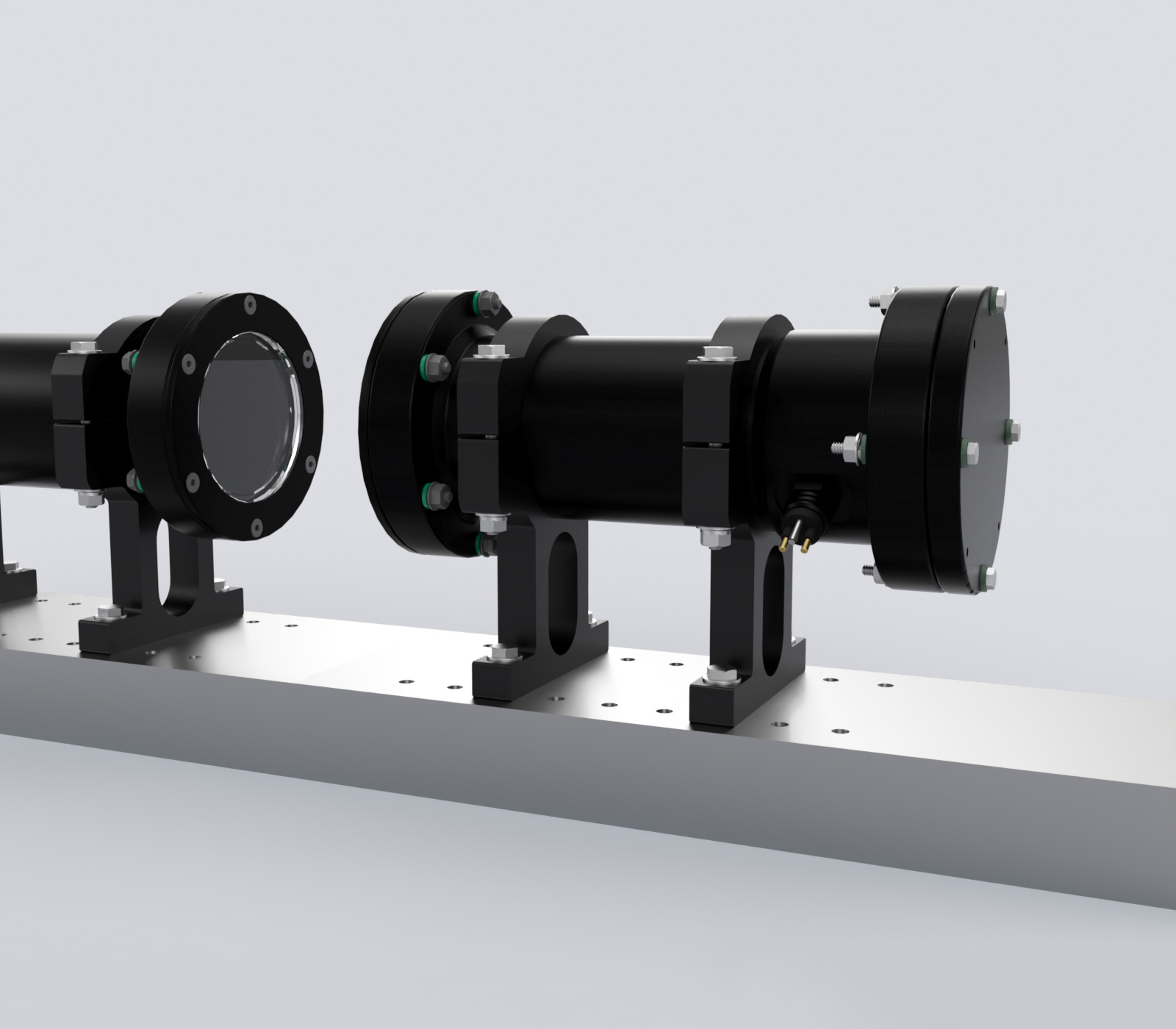

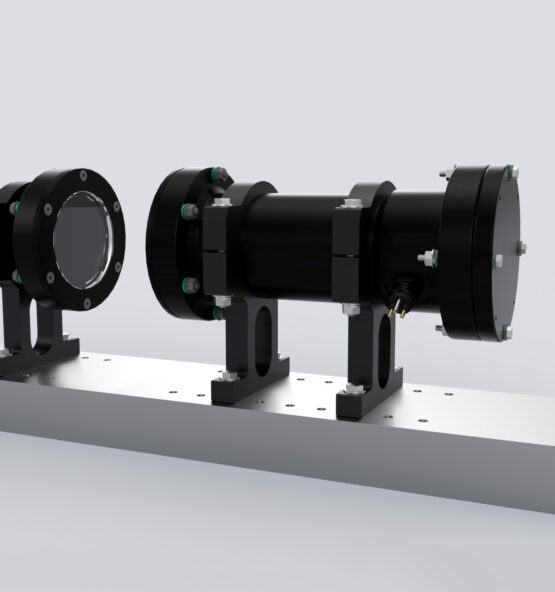

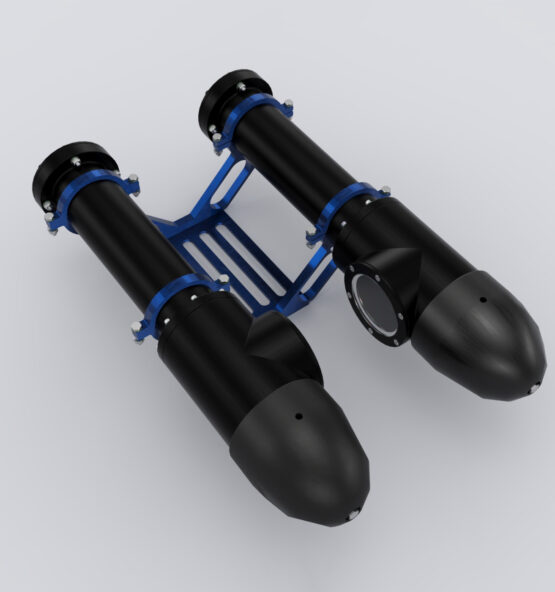

Mounted on a rigid beam, the ISIIS-DPI P75 allows users to adjust the spacing between optical pods. This flexibility enables researchers to balance resolution and sampled volume to meet specific scientific objectives.
The P75 integrates seamlessly with SIDEKICK Performance, allowing plankton imagery to be synchronized with complementary oceanographic measurements. The result is a compact, field-proven system that simplifies deployment while enabling quantitative, environmentally contextualized plankton studies.
| Standard field of view & depth of field: | FOV: 48mm x 48mm & DOF: 120mm |
| Volume of water imaged per frame: | .27L |
| Pixel resolution: | 26µm/pixel |
| Recommended for particles: | >300µm |
| Camera: | 5MP, 20fps, GigE, Global Shutter, 3.45µm pixel size, 2/3″ sensor, C-mount |
| Power: | 12V 6 Watts |
| Dimensions with rail & brackets: | L 840mm x W 141mm x H 221mm |
| Depth rating: | 60m (plastic) or 1,000m (aluminum) |
| Weights: | Plastic: in air: 7.6Kg | in water: 1.9Kg – Aluminum in air: 9.4Kg | in water: 3.7Kg |
| Connectors: | MCBH8M-CAT, MCBH2M-Power, MCBH2M-Power |
