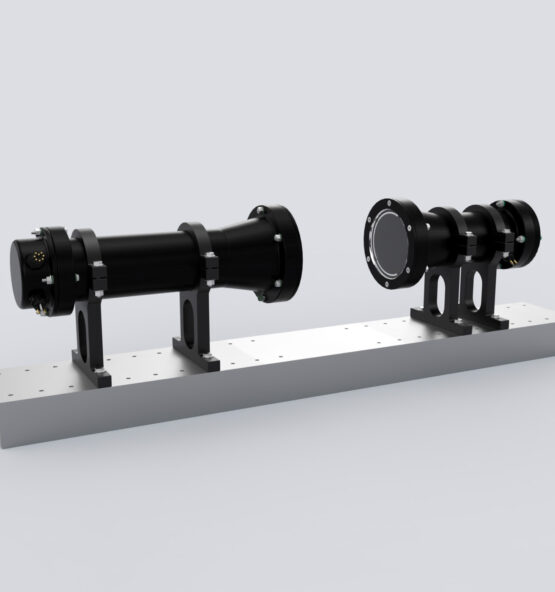

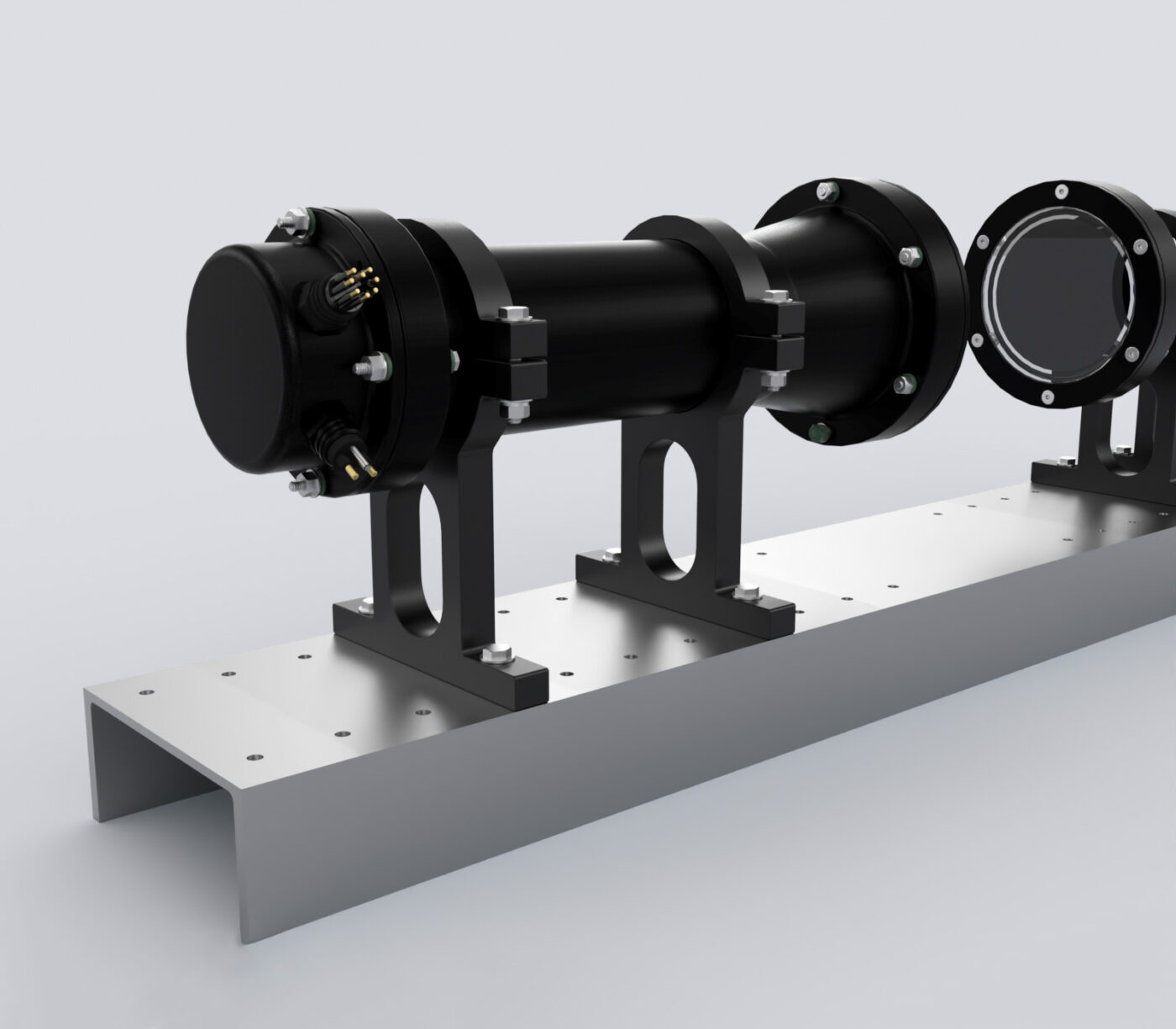

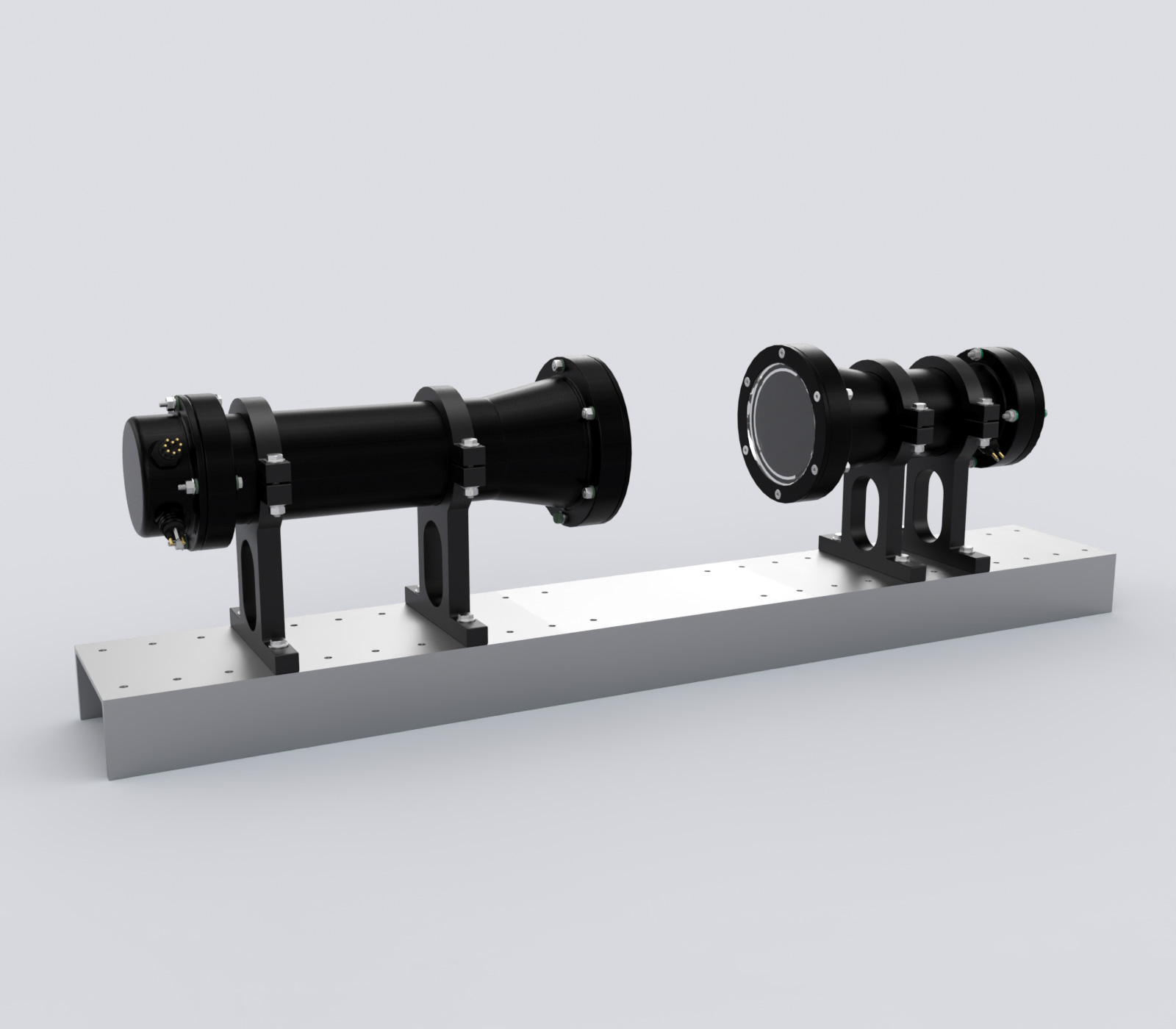

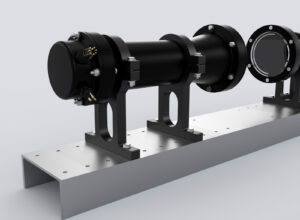

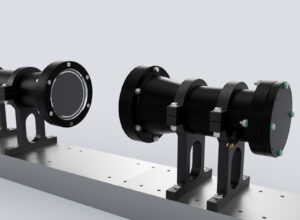

The ISIIS-DPI P100 is a mid-size imaging solution designed for studies requiring increased sampled volumes while maintaining high-quality imaging of mesoplankton and fragile organisms. Offering a very similar resolution as the P75, it is particularly well suited for investigations where maximizing water volume per image is critical.
Availability:In Stock
sdasd
When optimized for organisms approximately 500 µm and larger, the P100 can achieve a depth of field approaching 20 cm with a field of view of ~61 × 61 mm, significantly increasing the imaged volume. Alternatively, the system can be configured to resolve organisms down to ~300 µm, offering a larger field of view than the P75 while trading some depth of field to limit focus degradation and maintain image quality.
The P100 samples approximately 0.74 L per image, compared to 0.28 L for the P75, providing a substantial gain in volumetric sampling. Like the P75, it can be towed at speeds up to 3.25 knots, making it compatible with a wide range of platforms and survey strategies, including towed vehicle transects and large-area mapping.
As with all ISIIS-DPI P-series systems, the P100 is available in 60 m and 1,000 m depth-rated configurations.
The P100 integrates seamlessly with SIDEKICK Performance, allowing plankton imagery to be synchronized with complementary oceanographic measurements. The result is a compact, field-proven system that simplifies deployment while enabling quantitative, environmentally contextualized plankton studies.
| Standard field of view & depth of field: | FOV: 61mm x 61mm & DOF: 200mm |
| Volume of water imaged per frame: | 0.74L |
| Pixel resolution: | 30µm/pixel |
| Recommended for particles: | >500µm |
| Camera: | 5MP, 20fps, GigE, Global Shutter, 3.45µm pixel size, 2/3″ sensor, C-mount |
| Power: | 12V 6 Watts |
| Dimensions with rail & brackets: | L 1000mm x W 155mm x H 291mm |
| Depth rating: | 60m (plastic) or 1,000m (aluminum) |
| Weights: | Plastic: in air: 11.2Kg | in water: 3.0Kg – Aluminum in air: 13.8Kg | in water: 5.7Kg |
| Connectors: | MCBH8M-CAT, MCBH2M-Power, MCBH2M-Power |
